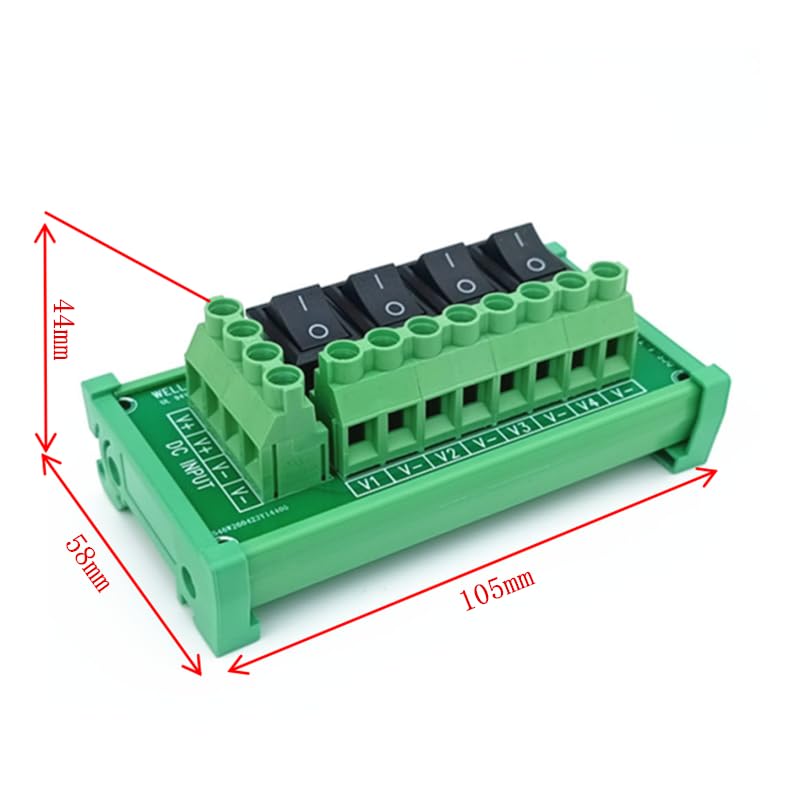

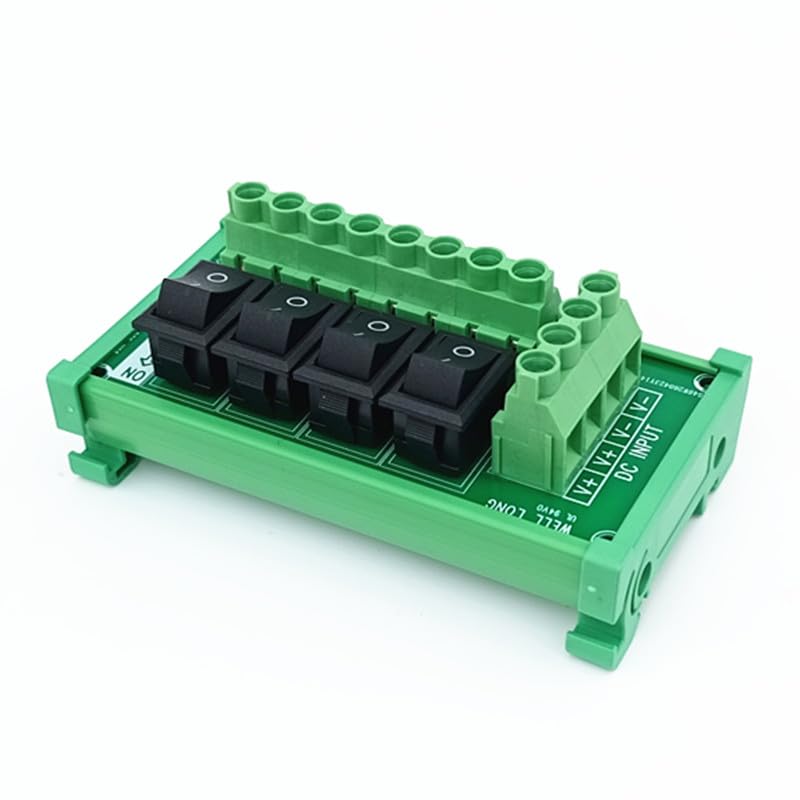

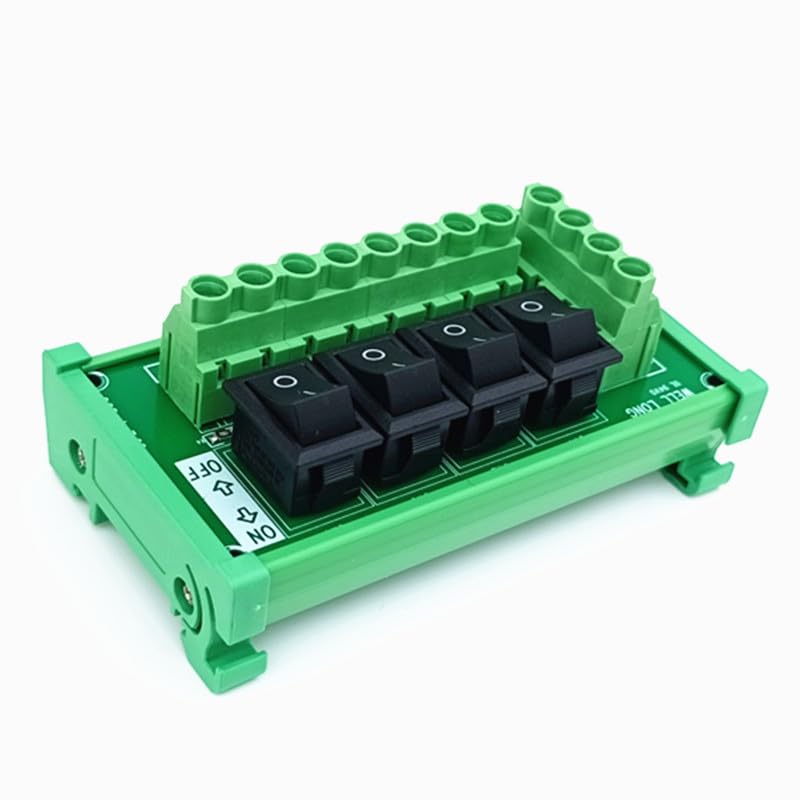

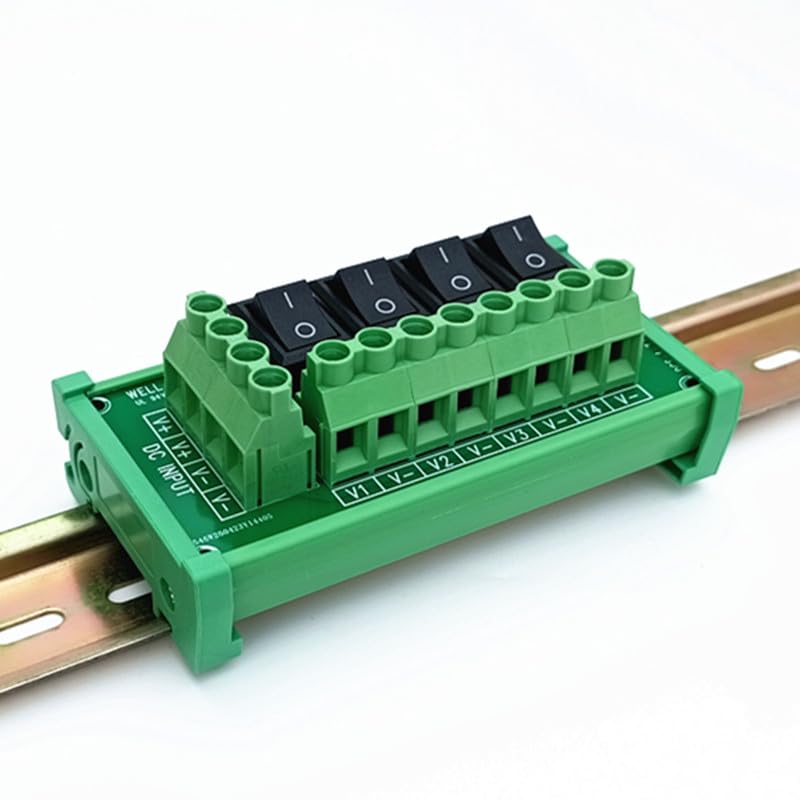

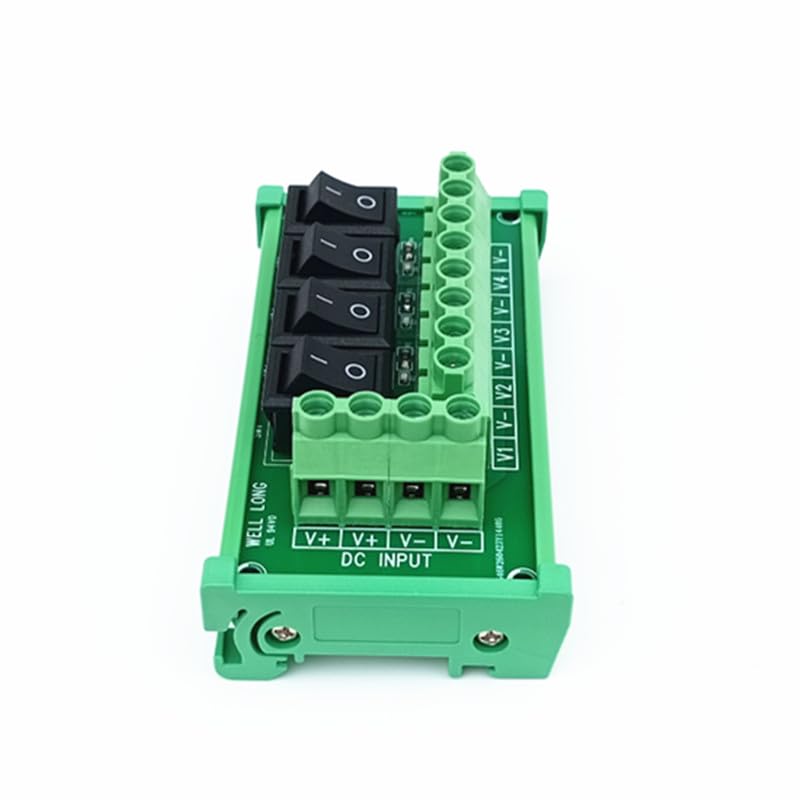

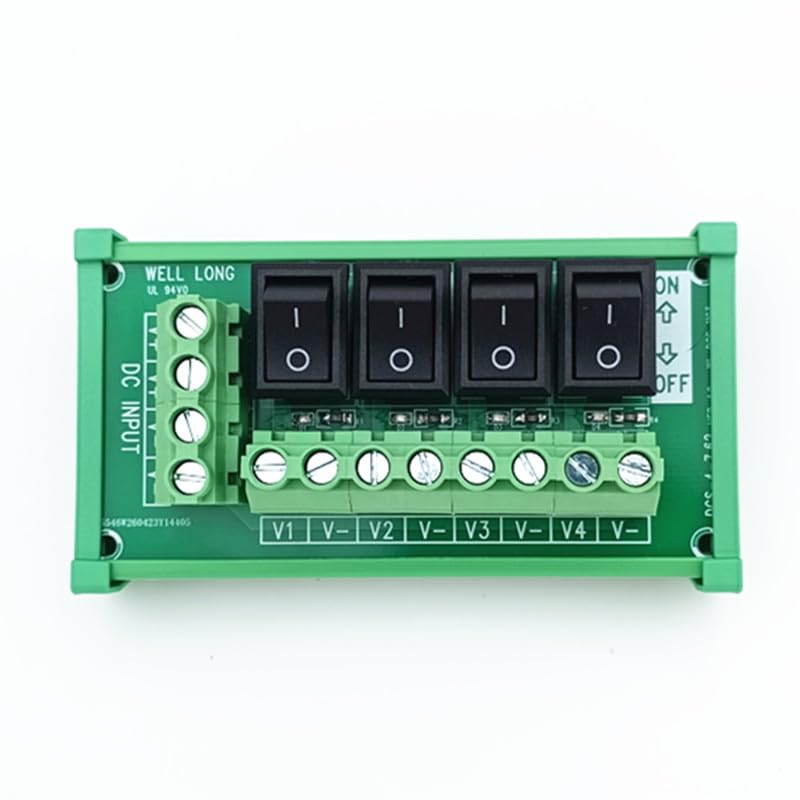

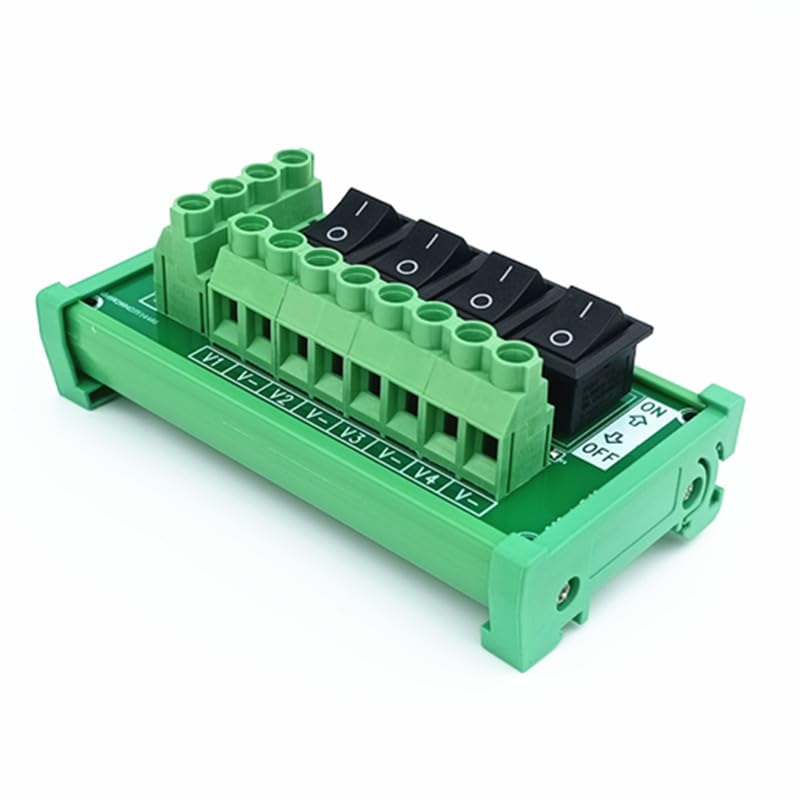

DIN Rail Mount 4 Channel Black Rocker Switch DC Power Distribution Strip Module.
Product details
| Management number | 239536066 | Release Date | 2026/07/14 | List Price | US$9.99 | Model Number | 239536066 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
DIN Rail Mount 4 Channel Black Rocker Switch DC Power Distribution Strip Module. Working voltage DC 0 to 50V. Maximum total input current 30 Amps. 4 Channels output, each channel maximum output current 10 Amps. Input terminals pitch 7.62mm/0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules. Output terminals pitch 7.62mm/0.3", wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Paddle rocker switch ON/OFF power output for each channel. With switch power ON LED indication function. High quality fireproof nylon material DIN rail mount carrier , can support width 35mm rail. FR-4 fiberglass dual copper layers PCB.
- Working voltage DC 0 to 50V. Maximum total input current 30 Amps. 4 Channels output, each channel maximum output current 10 Amps.
- Input terminals pitch 7.62mm/0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.
- Output terminals pitch 7.62mm/0.3", wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.
- Paddle rocker switch ON/OFF power output for each channel. With switch power ON LED indication function.
- High quality fireproof nylon material DIN rail mount carrier , can support width 35mm rail. FR-4 fiberglass dual copper layers PCB.
| ASIN | B0H4W13YQ8 |
|---|---|
| Model | WL-DCS-1105B-A3 |
| Brand Name | SZ-WEEL LONG |
| Item Weight | 120 Grams |
| Part Number | WL-DCS-1105B-A3 |
| Manufacturer | XUHONG |
| Material Type | Plastic |
| Included Components | Terminal Block, Header Connector, Din Rail Mount |
